  1. Sensor
  2. ARK Flow MR

Ardupilot Instructions

PreviousARK Flow MRNextPX4 Instructions

Last updated 3 months ago

Connection to Autopilot

Wiring

The ARK Flow is connected to the CAN bus using a Pixhawk standard 4 pin JST GH cable. For more information, refer to the instructions.

Multiple sensors can be connected by plugging additional sensors into the ARK Flow’s second CAN connector.

Mounting

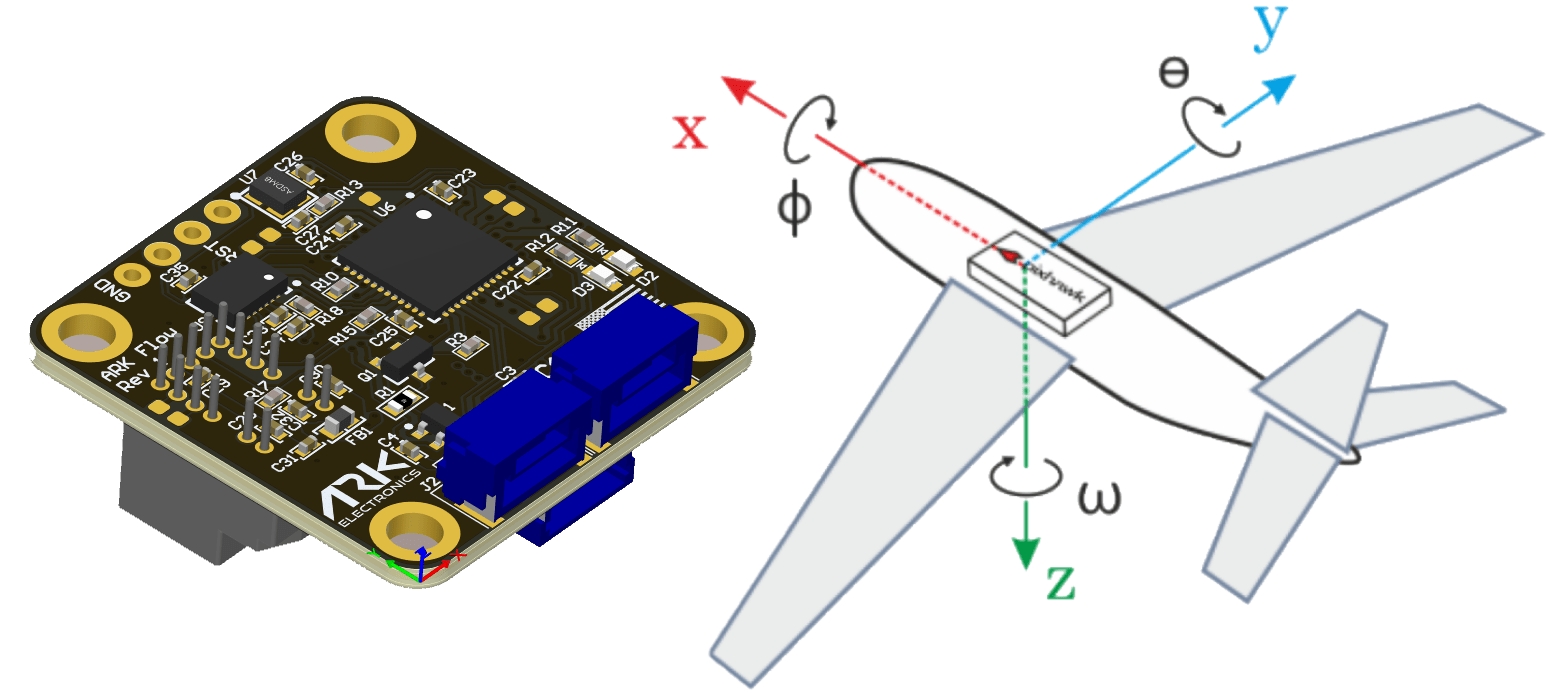

The recommended mounting orientation is with the connectors on the board pointing towards back of vehicle, as shown in the following picture.

ARK Flow align with Pixhawk

Connection to Autopilot

  • Connect the sensor to the autopilots’ CAN port

To use the onboard lidar:

Additional Notes

ArduPilot Setup Instructions

Set = 6 (DroneCAN)

Set = 1 to enable DroneCAN

Set = 1 (DroneCAN)

Set = 24 (DroneCAN)

Set = 5000 to set range finder’s maximum range to 50m

does not require the use of a rangefinder

Performance can be improved by setting the . For example if the sensor is mounted 2cm forward and 5cm below the frame’s center of rotation set to 0.02 and to 0.05.

FLOW_TYPE
CAN_P1_DRIVER
CAN_D1_PROTOCOL
RNGFND1_TYPE
RNGFND1_MAX
FlowHold
sensors position parameters
FLOW_POS_X
FLOW_POS_Z
CAN Wiring
Optical Flow Sensor Testing and Setup — Copter documentation
